| Takeoff Weight |
<<249 g [1]
* The standard weight of the aircraft including the Intelligent Flight Battery, propellers, and a microSD card. Actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.
|
| Dimensions (L×W×H) |

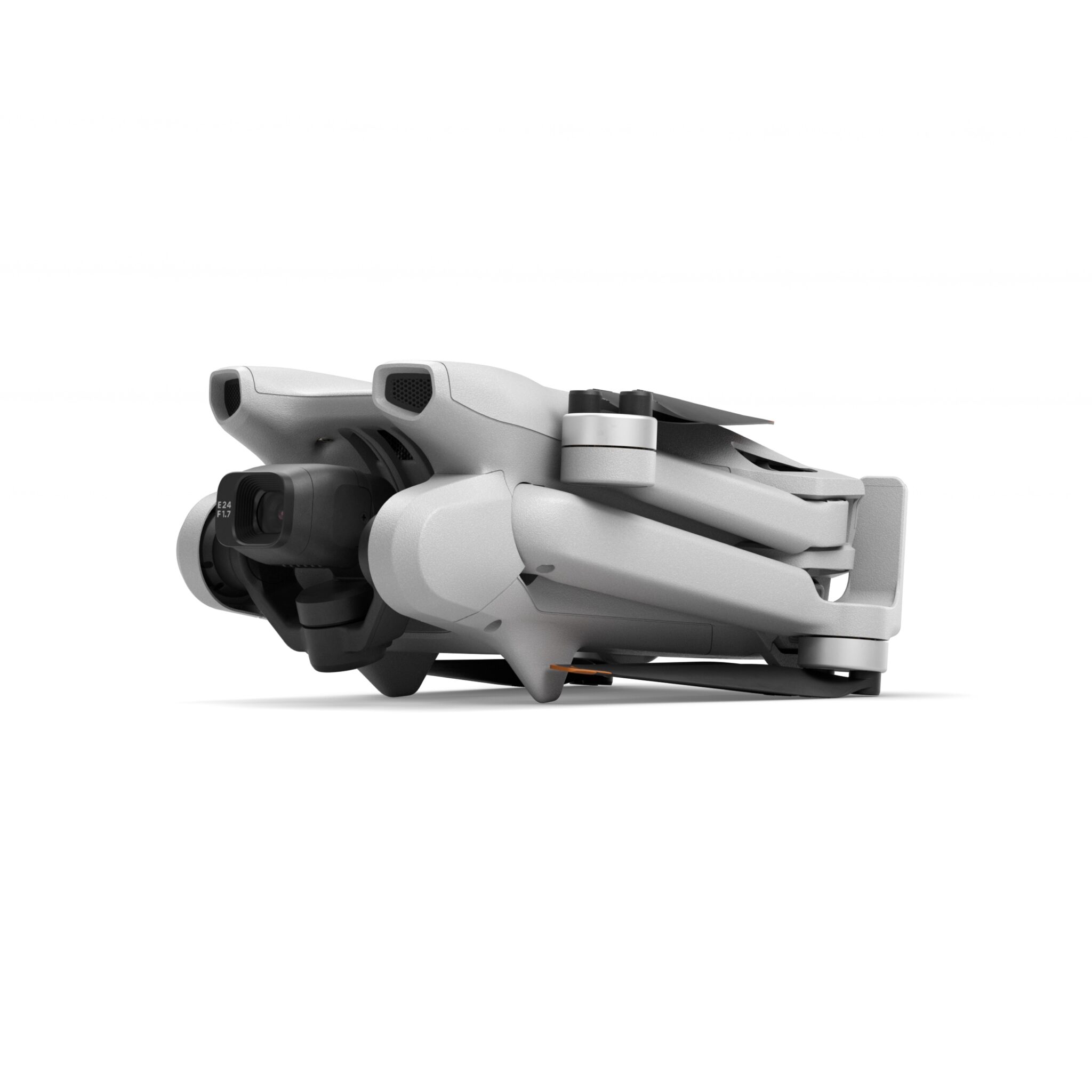

Folded (without propellers):
148×90×62 mm (L×W×H)
Unfolded (with propellers):
251×362×72 mm (L×W×H)
|
| Diagonal Length |
247 mm
|
| Max Ascent Speed |
5 m/s
|
| Max Descent Speed |
3.5 m/s
|
| Max Speed (at sea level, no wind) [2] |
16 m/s
* Max flight speed is subject to local restrictions that may change. Please abide by local laws and regulations when flying.
|
| Max Service Ceiling Above Sea Level |
With Intelligent Flight Battery: 4000 m
With Intelligent Flight Battery Plus [7]: 3000 m [3]
* Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid a lack of propulsion.
|
| Max Flight Time |
38 minutes (with Intelligent Flight Battery and flying forward at a constant speed of 21.6 kph in a windless environment)
51 minutes (with Intelligent Flight Battery Plus and flying forward at a constant speed of 21.6 kph in a windless environment)
|
| Max Hovering Time |
33 minutes (with Intelligent Flight Battery and in a windless environment)
44 minutes (with Intelligent Flight Battery Plus and in a windless environment)
|
| Max Flight Distance |
18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)
25 km (with Intelligent Flight Battery Plus [7] and measured while flying at 43.2 kph in windless conditions)
|
| Max Wind Speed Resistance |
10.7 m/s (Level 5)
|
| Max Tilt Angle |
40°
|
| Operating Temperature |
-10° to 40° C (14° to 104° F)
|
| Global Navigation Satellite System (GNSS) |
GPS + GLONASS + Galileo
|
| Hovering Accuracy Range |
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
|
| Internal Storage |
N/A
|
| Sensing Type |
Downward vision system
|
| Downward |
Precise Hovering Range: 0.5-10 m
|
| Operating Environment |
Diffuse reflective surfaces
with a clear pattern
and reflectivity > 20% (such as walls, trees, or people)
Adequate lighting
(lux > 15, normal indoor lighting conditions)
|
| Stabilization |
3-axis mechanical gimbal (tilt, roll, and pan)
|
| Mechanical Range |
Tilt: -135° to 80°
Roll: -135° to 45°
Pan: -30° to 30°
|
| Controllable Range |
Tilt: -90° to 60°
Roll: -90° or 0°
|
| Max Control Speed (tilt) |
100°/s
|
| Angular Vibration Range |
±0,01°
|
| Supported Memory Cards |
UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below.
|
| Recommended microSD Cards |
SanDisk Extreme 32GB V30 A1 microSDXC
SanDisk Extreme 64GB V30 A1 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme Pro 32GB V30 A1 microSDXC
Kingston Canvas Go!Plus 64GB V30 A2 microSDXC
Kingston Canvas Go!Plus 128GB V30 A2 microSDXC
Kingston Canvas Go!Plus 256GB V30 A2 microSDXC
Kingston Canvas React Plus 64GB V30 A1 microSDXC
Kingston Canvas React Plus 128GB V30 A1 microSDXC
Samsung PRO Plus 256GB V30 A2 microSDXC
|
| Transmitter Power(EIRP) |
2,400-2,4835 GHz:
<26 dBm (FCC),
<20 dBm (CE/SRRC/MIC)
5,725-5,850 GHz:
< 26 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)
|
| Max Sizeof SupportedMobile Devices |
Length: 180 mm, Width: 86 mm, Height: 10 mm
|
| Supported Typesof Ports |
Lightning, Micro USB (Type-B), USB-C
|
| Max Timeof Battery Work |
6 hrs (without charging any mobile device)
4 hrs (when charging a mobile device)
|
| Rangeof Operating Temperature |
-10° to 40° C (14° to 104° F)
|
| Sensor |
1/1.3-inch CMOS
Effective Pixels：12MP
|
| Lens |
FOV: 82.1°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
|
| ISO Range |
Video:
100-3200
Photo:
100-3200
|
| Shutter Speed |
Electronic Shutter: 2-1/8000 s
|
| Max Image Size |
4000×3000
|
| Still Photography Modes |
Single Shot: 12 MP
Timed: 12 MP
JPEG: 2/3/5/7/10/15/20/30/60 s
JPEG + RAW: 5/7/10/15/20/30/60 s
Automatic Exposure Bracketing (AEB): 12 MP, 3 frames at 2/3 EV step
Panorama: Sphere, 180°, Wide Angle
HDR: The Single Shot mode supports outputting HDR images.
|
| Photo Format |
JPEG/DNG (RAW)
|
| Video Resolution |
4K: 3840×2160@24/25/30 fps
2.7K: 2720×1530@24/25/30/48/50/60 fps
FHD: 1920×1080@24/25/30/48/50/60 fps
HDR: Recording with the 24/25/30fps frame rate supports outputting HDR images.
|
| Video Format |
MP4 (H.264)
|
| Max Video Bitrate |
100 Mbps
|
| Zoom Range |
4K: 2x
2,7K: 3x
FHD: 4x
|
| QuickShot Modes |
Dronie, Helix, Rocket, Circle, and Boomerang
|
| Color Profiles |
Normal
|
| Supported File System |
FAT32 (≤32 GB)
exFAT (>32 GB)
|
| Capacity |
2453 mAh
|
| Weight |
80,5 g
|
| Voltage |
7,38 V
|
| Charging Voltage Limit |
8,5 V
|
| Battery Type |
Li-Ion
|
| Energy and Infrastructure |
18,1 Wh
|
| Charging Temperature |
5° to 40° C (41° to 104° F)
|
| Charging Time |
64 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)
|
| Video Transmission System |
DJI O2
|
| Live View Quality |
RC:
720p/30fps
|
| Operation Frequency |
2.400-2.4835 GHz
5.725-5.850 GHz
|
| Transmitter Power (EIRP) |
2.400-2.4835 GHz: < 26 dBm (FCC) < 20 dBm (CE/SRRC/MIC)
5.725-5.850GHz: < 26 dBm (FCC/SRRC) < 14 dBm (CE)
|
| Max Transmission Distance (free of interference) |
FCC: 10 km
CE: 6 km
SRRC: 6 km
MIC: 6 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
|
| Max Transmission Distance (with interference) |
Strong Interference: urban landscape, approx. 1.5-3 km
Medium Interference: suburban landscape, approx. 3-6 km
Low Interference: suburb/seaside, approx. 6-10 km
Data tested under FCC standard in unobstructed environments with typical interference.
Used for reference purposes only and provides no guarantee for actual flight distance.
|
| Max Download Speed |
DJI O2:
5.5 MB/s (with DJI RC-N1 Remote Controller)
5.5 MB/s (with DJI RC)
Wi-Fi 5: 25 MB/s*
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the SD card. Download speeds may vary depending on the actual conditions.
|
| Lowest Latency |
Approx. 200 ms
Depending on the actual environment and mobile device.
|
| Antennas |
2 antennas, 1T2R
|
| Recommended Charger |
DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)*
* When you charge the battery mounted to the aircraft or inserted into the Two-Way Charging Hub, the maximum charging power supported is 30 W.
|
| Input |
5 V, 3 A
9 V, 3 A
12 V, 3 A
|
| Output |
USB-A: Max Voltage: 5 V; Max Current: 2 A
|
| Charging Type |
Three batteries charged in sequence
|
| Compatible Batteries |
DJI Mini 3 Pro Intelligent Flight Battery,
DJI Mini 3 Pro Intelligent Flight Battery Plus*
* Sold separately and only in selected countries and regions.
|
| Mobile Device App |
DJI Fly
|
| Required Operating System |
iOS v11.0 or later
Android v6.0 or later
|
